HDCVT SWITCH HDMI 2.0 3-1

What this part is

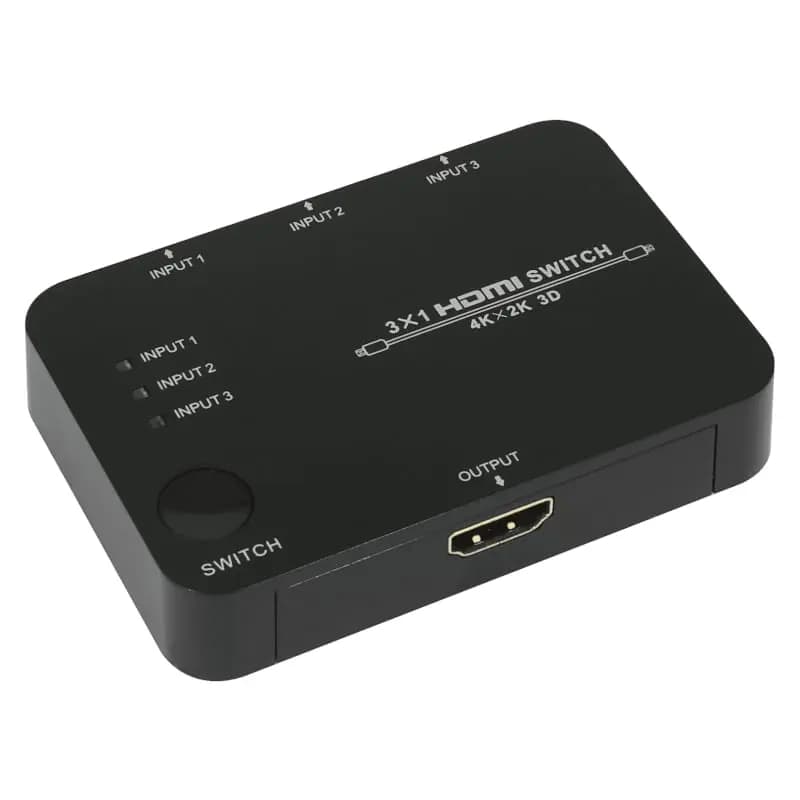

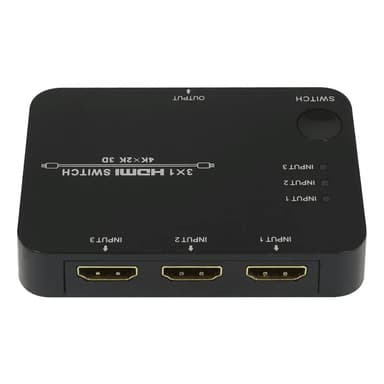

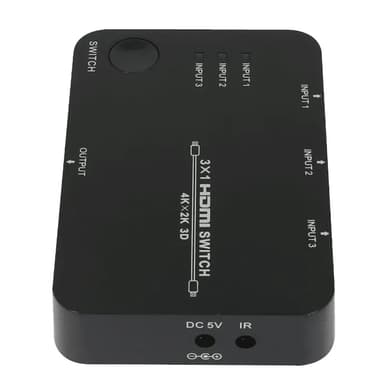

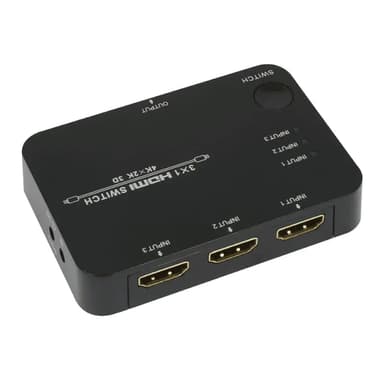

<p>The HDCVT 18Gbps HDMI 3 x 1 Switch can switch any of the 3 available HDMI sources to one HDMI display. It supports video resolutions of up to 4K2K@50/60Hz YCbCr 4:4:4. The HDMI Switch supports various audio and video features such as HDR, HDR10, Dolby Vision and HLG. It supports all 3D video formats as well. The HDMI Switch also features low power consumption and can be controlled via either the panel button or via the included remote control.</p> <h3>FEATURES:</h3> <ul> <li>HDMI V2.0 supports resolutions up to 4K2K@50/60Hz YCbCr 4:4:4</li> <li>HDCP and EDID compliant</li> <li>Supports all 3D formats</li> <li>Switch using a manual button or included IR remote</li> <li>Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)</li> <li>Ultra-low power consumption does not require a power supply</li> <li>5V USB to DC power cable included for additional power requirements</li> </ul> <h3>SPECIFICATIONS:</h3> <ul> <li>Housing: Plastic Enclosure</li> <li>Silkscreen Colour: Black</li> <li>HDCP Compliance: HDCP 2.2/1.x</li> <li>Video Bandwidth: 18Gbps</li> <li>Video Resolution: Up to 4K2K@60Hz</li> <li>Colour Depth: 8-bit (4K60Hz)</li> <li>Colour Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4</li> <li>HDMI Audio Formats: PCM2.0/5.1/7.1 CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio</li> <li>ESD Protection: Human body model – ±8kV (Air-gap discharge) &amp; ±4kV (Contact discharge)</li> <li>Input Ports: HDMI Type A (19-pin female) x3, IR in (3.5mm Stereo Mini-jack) x1</li> <li>Output Ports: HDMI Type A (19-pin female) x1</li> <li>Power Supply: Input: 5V/1A</li> <li>Power Consumption: 1.5W</li> <li>Dimensions: 8.7 x 5.9 x 1.9 cm</li> <li>Weight: 60g</li> </ul> <h3>WHAT’S IN THE BOX:</h3> <ul> <li>HDCVT HDMI 3 x 1 Switch – Black x1</li> <li>USB Power Cable x1</li> <li>Remote Control x1</li> <li>IR Reciever x1</li> <li>User Manual x1</li> </ul>
