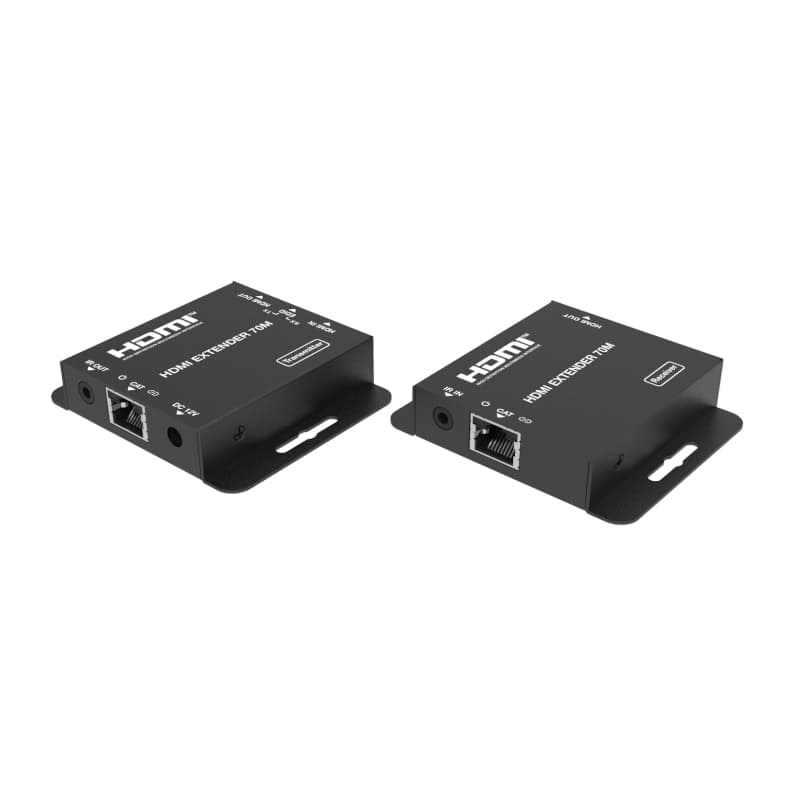

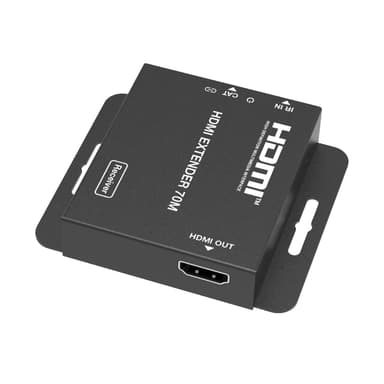

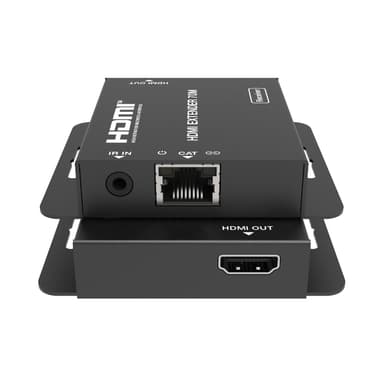

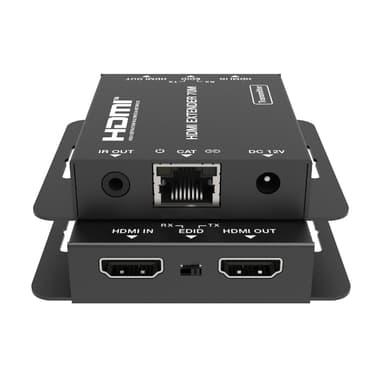

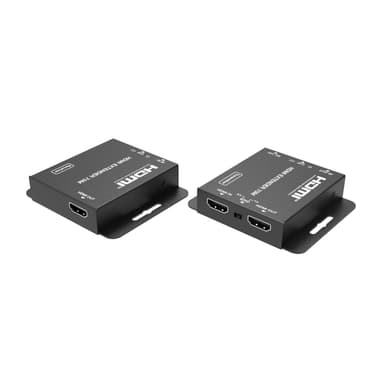

HDCVT HDMI1.4 70m Extender with IR

What this part is

<p>The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.</p> <h3>FEATURES:</h3> <ul> <li>HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant</li> <li>Support Video Resolution up to 4K2K@30Hz YUV 4:4:4</li> <li>CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30</li> <li>CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30</li> <li>Support Copying EDID from Receiver Display or Loop Out Display</li> <li>Allow for Cascading via additional HDMI loop out port</li> <li>Support one-way POC functionality (from transmitter to receiver)</li> <li>One-way IR signal transmission</li> </ul> <h3>SPECIFICATIONS:</h3> <ul> <li>HDMI Compliance: HDMI 1.4</li> <li>HDCP Compliance: HDCP 1.4</li> <li>Video Bandwidth: 10.2Gbps</li> <li>Video Resolution: Up to 4K@30Hz</li> <li>Audio Support Up to 7.1CH HD audio</li> <li>Input TMDS Signal: 3.3 volts</li> <li>Input DDC Signal: 5.0 volts/P-P</li> <li>ESD Protection <ul> <li>Human Body model: <ul> <li>+/- 8 kV (air-gap discharge)</li> <li>+/- 4 kV (contact discharge)</li> </ul> </li> </ul> </li> <li>Transmitter: <ul> <li>Input: <ul> <li>1 x HDMI Type A [19-pin female]</li> </ul> </li> <li>Output: <ul> <li>1 x HDMI Type A [19-pin female]</li> <li>1 x IR OUT [3.5mm Stereo Mini-jack]</li> <li>1 x CAT OUT [RJ45, 8-pin female]</li> </ul> </li> </ul> </li> <li>Receiver: <ul> <li>Inputs: <ul> <li>1x IR IN [3.5mm Stereo Mini-jack]</li> <li>1x CAT IN [RJ45, 8-pin female]</li> </ul> </li> <li>Output: <ul> <li>1x HDMI Type A [19-pin female]</li> </ul> </li> </ul> </li> <li>Housing: Metal Enclosure</li> <li>Colour: Black</li> <li>Power Supply 12V/1A DC</li> <li>Power Consumption <ul> <li>Transmitter: 1.86W</li> <li>Receiver: 0.87W</li> </ul> </li> <li>Product Dimensions: 7.9 x 6.9 x 1.7 cm</li> <li>Weight: <ul> <li>Transmitter: 132g</li> <li>Receiver: 130g</li> </ul> </li> </ul> <h3>WHAT'S IN THE BOX:</h3> <ul> <li>HDCVT HDMI 70M Extender Receiver x1</li> <li>HDCVT HDMI 70M Extender Transmitter x1</li> <li>IR Blaster Cable x1</li> <li>IR Receiver Cable x1</li> <li>12V/1A DC Power Adapter x1</li> <li>User Manual x1</li> </ul>
