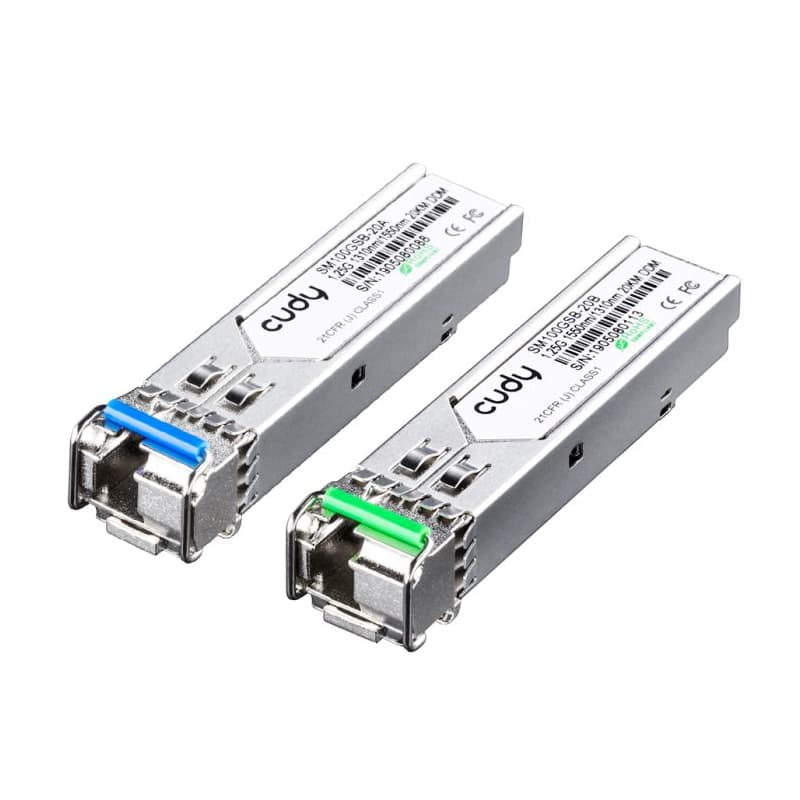

Cudy Single Mode 1.25G LC Bi-Directional SFP 20km

What this part is

<p>Cudy's CD-SFP-SMB is your answer for efficient and cost-effective single-mode fibre deployments! These bi-directional modules redefine connectivity standards with a powerful design optimised for 1.25 Gbps transmission over distances of up to 20km.</p> <p>The CD-SFP-SMB modules are sold as a pair and feature a smart SFP package with LC connectors, ensuring cross-vendor compatibility. What distinguishes them is their novel application of bi-directional technology, which enables duplex transmission on a single fibre by utilising two distinct wavelengths for TX and RX on the same optical strand. This not only improves performance but also significantly lowers installation costs.</p> <p>Choose between the SM100GSB-20A with a 1310nm FP laser and a 1550nm PIN photodetector or the SM100GSB-20B with a 1550nm DFB laser and a 1310nm PIN photodetector to meet your specific requirements.</p> <p>These modules provide dependable performance because they are powered by a single +3.3V power supply and have an LVPECL-compatible data input/output interface. The CD-SFP-SMB provides a strong and secure connection thanks to its low EMI and excellent ESD protection. These modules prioritise environmental sustainability while adhering to RoHS and SFF8472 standards.</p> <h3>FEATURES:</h3> <ul> <li>SFP package with LC connector</li> <li><strong> SM100GSB-20A: </strong>1310nm FP Laser and 1550nm PIN photodetector</li> <li><strong>SM100GSB-20B: </strong>1550nm DFB Laser and 1310nm PIN photodetector</li> <li>Up to 20 km transmission on SMF</li> <li>+3.3V single power supply</li> <li>LVPECL-compatible data input/output interface</li> <li>Low EMI and excellent ESD protection</li> <li>Compatible with RoHS</li> <li>Compatible with SFF8472</li> </ul> <h3>SPECIFICATIONS:</h3> <ul> <li>Ethernet Channel Speed: 1.25 GB/s</li> <li>Fibre Channel Speed: 1.06 Gb/s</li> <li>Form Factor: SFP (BiDi)</li> <li>Mode: Single Mode</li> <li>Supported Distance: 20km</li> <li>Wavelength: 1310nm / 1550nm</li> <li>Optical Eye Diagram: IEEE 802.3z and ANSI Fibre Channel Compatible</li> <li>Input Differential Impendence (Min) (Max): 90, 110 Ohm</li> <li>Data Input Swing Differential (Min) (Max): 500, 2400 mV</li> <li>Output differential impendence (Typ): 100 Ohm</li> <li>Data Input Swing Differential (Min) (Max): 370, 2000 mV</li> <li>Supply Voltage (Min) (Max): 3.15, 3.45 V</li> <li>Operating Case Temperature (Min) (Max): 0, 70 ℃</li> <li>Voltage: 3-15 ~ 3.45 V</li> <li>Bias Current: 10 ~ 80 mA</li> <li>Tx Power: -9 ~ -3 dBm</li> <li>Rx Power: -26~-3 dBm</li> </ul> <h3>WHAT’S IN THE BOX:</h3> <ul> <li>Cudy 1.25Gbps BIDI SFP Optical Transceiver 20Km DDM x1</li> <li>Installation Guide x1</li> </ul>
