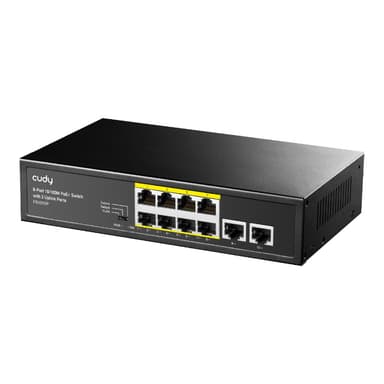

Cudy 10-Port Unmanaged PoE+ Switch

What this part is

<p>The Cudy FS1010P 10-Port 10/100M PoE+ Switch makes it easy to manage your home or office network. It ensures safe operation for non-standard PoE devices while conforming to the IEEE802.3af/at standards, with a total PoE power capacity of 120 W and the ability to deliver up to 30 W of power to a single PoE port.</p> <p>The PoE watchdog feature monitors the connectivity status of remote PoE devices in real-time. If an issue with a remote PoE device is detected, the PoE switch immediately performs a restart to restore normal operation.</p> <p>It's a simple, plug-and-play solution that's really easy to use. Its fanless design ensures silent operation, and the long-lasting metal case provides longevity and excellent heat dissipation, making it suited for a variety of situations.</p> <p>The pin assignment is as follows: 1/2 (positive), 3/6 (negative), making it compatible with a wide range of devices. It works well with IP cameras in both the home and workplace, VoIP phones for professional conferences, and WiFi access points for office and commercial applications.</p> <h3>FEATURES:</h3> <ul> <li>Support IEEE802.3at and IEEE802.3af Standard</li> <li>120W PoE power output, up to 32W for one PoE port</li> <li>Support IEEE802.3x full duplex and half duplex flow control</li> <li>Support VLAN and CCTV Function</li> <li>Panel lights to monitor working state and help fault analysis</li> <li>Perfect security mechanism</li> <li>Line-speed forwarding intelligent identification</li> </ul> <h3>SPECIFICATIONS:</h3> <ul> <li>PoE standard: IEEE802.3af/at</li> <li>Interface: 10*10/100Mbps The RJ45 port through consultation</li> <li>Key function: CCTV&amp;VLAN</li> <li>PoE port: 1~8 port</li> <li>PoE Total: 120W</li> <li>Power supply: 120W</li> <li>RJ45 PoE power supply: Mode A, Anode1/2, Cathode3/6</li> <li>PoE output-port: Max 32W</li> <li>Indicator: PWR, LNK/ACT, PoE</li> <li>Network media: <ul> <li>10BASE-T: UTP category 3, 4, 5 cable(≤100m)</li> <li>100BASE-TX: UTP category 5, 5e cable(≤100m)；</li> </ul> </li> <li>MAC Address Table: 8K, Automatic study, automatic updates</li> <li>Jumbo frame: 1528Bytes</li> <li>Packet Neck Scarfer: 2M bit</li> <li>Transfer Mode: Store-and-forward</li> <li>Packet forwarding rate: 1.48Mpps</li> <li>Bandwidth: 2M bit</li> <li>Fan: Fanless</li> <li>Mains Input: 100~240V AC, 50/60Hz</li> <li>Surge Protection: ±4KV</li> <li>MTBF: &gt;50000 hour</li> <li>Electrostatic standard: Contact 4KV, air 6KV</li> <li>Colour: Grey</li> <li>Product Dimensions: 20 x 18 x 4.4 cm</li> <li>Product Weight: 1000g</li> </ul> <h3>WHAT'S IN THE BOX:</h3> <ul> <li>Cudy FS1010P 10-Port 10/100M PoE+ Switch - Grey x1</li> <li>Power Adapter x1</li> </ul>
